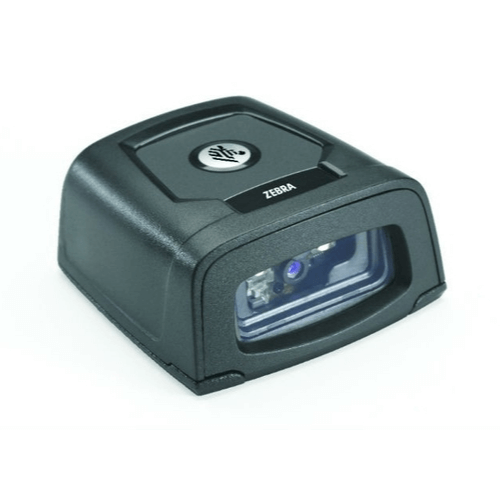

Zebra MS4717 Fixed Mount Barcode Scanner
Short Description
You need a perfect device to track and trace operations from a small restaurant to a high-volume airport ticket counter. Zebra MS4717 Fixed Mount Barcode Scanner is the ideal tool for reducing workflow errors and increasing productivity which features PRZM Intelligent Imaging technology that can instantly capture any 1D,2D barcodes for various wide ranges. Zebra MS4717 is specially designed for Restaurants, ATMs, Airline Check-in, Smart lockers, Ticket checkers, E-voting machines.
Authorized Distributor of Zebra MS4717 Fixed Mount Barcode Scanner
Physical Characteristics
Dimensions | 1.10 in. H x 1.89 in. L x 2.17 in. W |
Weight | 4.13 oz / 117 g |
Input Voltage Range | Maximum: 5 VDC +/- 10% @ 480 mA |
Performance Characteristics
Image Sensor | 1280 x 800 pixels |
Imager Field of View | 42° H x 28° V Nominal |
Light Source | Aiming Pattern: Circular 610nm Amber LED |
Minimum Print Contrast | 20% minimum reflective difference |
User Environment
Operating Temperature | -4° to 122° F /-20° to 50° C* |
Storage Temperature | -40° to 158° F /-40° to 70° C |
Humidity | Operating: 95% RH, non-condensing at 50°C Storage: 85% RH, non-condensing at 70°C |
Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
Sealing | IP54 |
