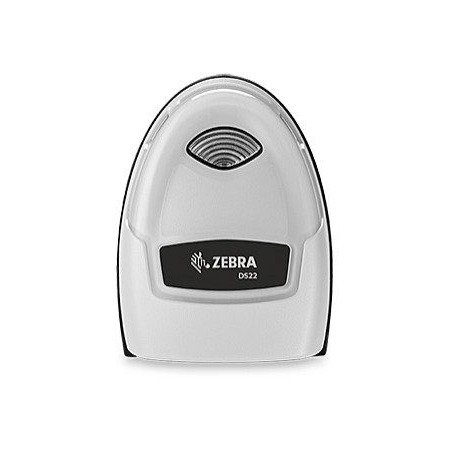

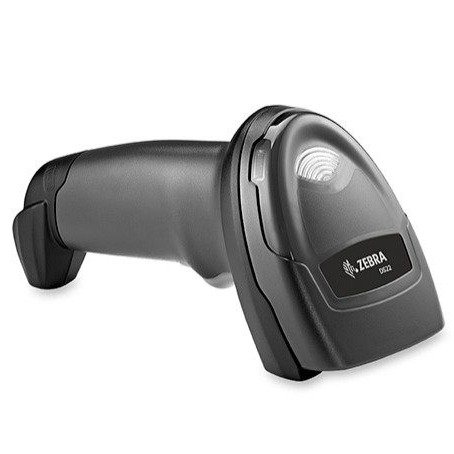

Zebra DS2208 Corded Barcode Scanner
Short Description
AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.
Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.
But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Authorized Distributor of Zebra DS2208 Handheld Barcode Scanner
Physical Characteristics
| Dimensions | 6.5 in. H x 2.6 in. W x 3.9 in. D |
| Weight | 5.7 oz. / 161.6 g |
| Input Voltage Range | 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports more than 90 international keyboards |
| User Indicators | Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper |
Performance Characteristics
| Motion Tolerance | Up to 5 in./13 cm. per second for 13 mil UPC |
| Light Source | Aiming Pattern: Linear 624nm Amber LED |
| Illumination | (2) 645nm Super-Red LEDs |
| Minimum Print Contrast | 25% minimum reflective difference |
| Skew/Pitch/Roll Tolerance | +/- 65°; +/- 65°; 0-360° |
User Environment
| Operating Temperature | 32.0° to 122.0° F/0.0° to 50.0° C |
| Storage Temperature | -40.0° to 158.0° F/-40.0° to 70.0° C |
| Drop Specification | Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete |
| Tumble Specification | Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1 |
| Environmental Sealing | IP52 |
| Humidity | 5% to 95% RH, non-condensing |
Put the Zebra DS2208 Handheld Barcode Scanner to Work in
Retail
- Point-of-Sale (POS)
- Loyalty applications
- Electronic coupon redemption
Hospitality
- Check-in
- Ticketing (concerts, sporting events and more)
- Loyalty cards
Transportation & Logistics
- Back-of-store shipping and receiving
- Product tracking
- Ticketing (airports, train and bus terminals)
- Postal
Light/Clean & Manufacturing
Government
- Lottery and gaming
- Administration
- Banking
